Flat Bottom Drill KDZ KDZ0130X1.5S040N
Download
Parameters

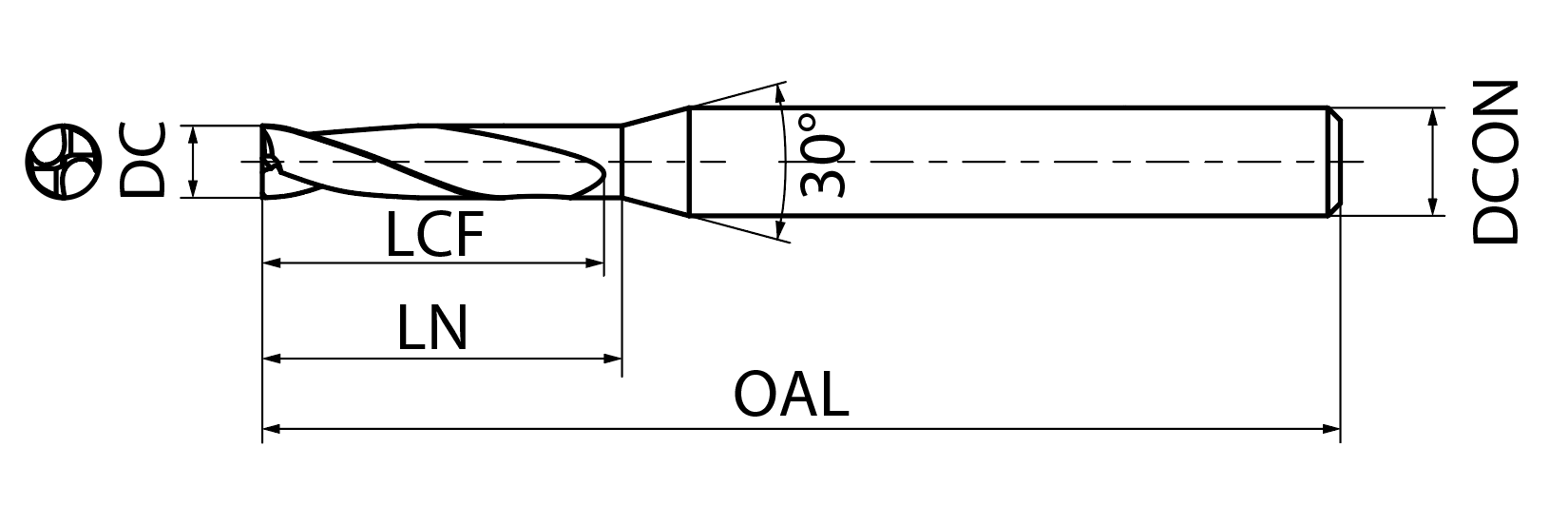

2D drawing
This logo indicates that the 3D model is automatically generated from the parameters<ISO13399 Standard> by ToolsUnited.
https://info.toolsunited.com/
https://info.toolsunited.com/
1st Recommended Work Material
P
- Vc
- -
- f
- -
- Vf
- -
K
- Vc
- -
- f
- -
- Vf
- -
N
- Vc
- -
- f
- -
- Vf
- -
2nd Recommended Work Material
Recommended cutting conditions are provided as reference values for the initial machining setup and do not guarantee tool life or machining quality. Actual cutting conditions should be adjusted according to the specific machining environment and operating conditions.
Dimension
| COATING | - |
|---|---|
| DC | 1.3 mm |
| LCF | 4 mm |
| LN | 5 mm |
| LU/DC | 1.5 D |
| DCON | 4 mm |
| OAL | 50 mm |
| ZEFP | - |
| TCDCONMS | h5 |
| SIG | 180 ° |
| NOF | 2 |
